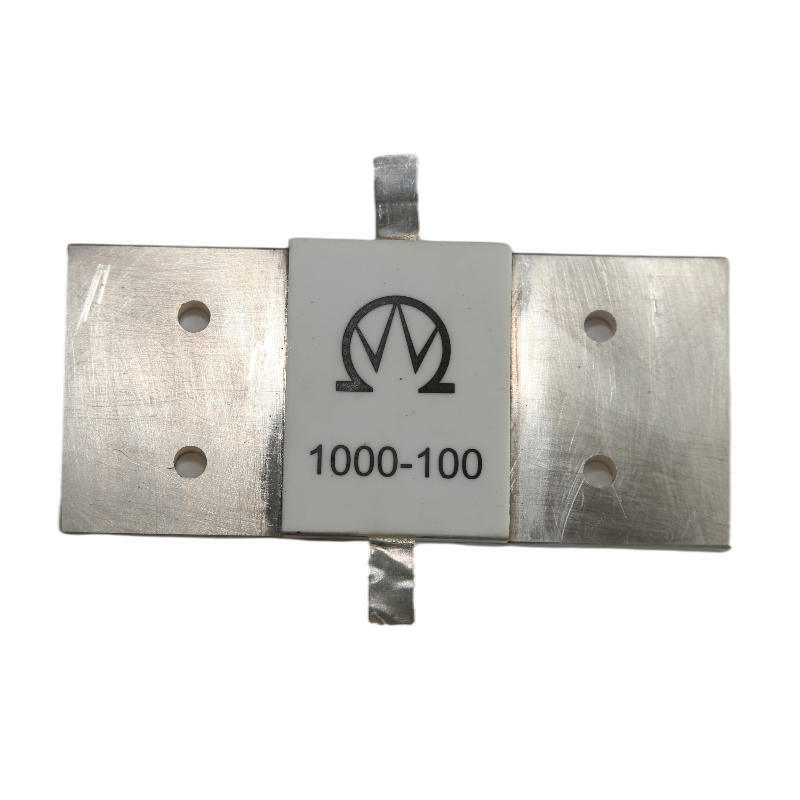

High Power 1000W 0.1 Ohm RIG Flange Resistor
Professional-grade flange resistor designed for high-power applications with excellent high-frequency characteristics and stable performance.
Product Features and Applications
- Compact size with large power capacity
- Excellent high-frequency characteristics
- Stable performance and easy installation
- Ideal for power dividers, isolation resistance, and terminal load resistance in high-frequency circuits
- Applications include cavity couplers, combiners, duplexers, TV/FM transmitters, signal generators, base station antennas, 3G systems, and smart antennas
- Widely used in aviation, aerospace, radar systems, radio stations, broadcasting, and communication equipment
Electrical Characteristics
| Nominal Resistance Range |
1Ω-500Ω |
| Resistance Tolerance |
±5% |
| Frequency Range |
0~2GHz |
| Standing Wave Ratio |
1.2~1.3 |
| Insulation Resistance |
≥ 1GΩ |
| Withstand Voltage |
500V/1 mm (Substrate thickness) |
Physical Characteristics
| Terminal Strength (10N, 5S) |
No loose and fall off |
| Solderability (240℃, 3s) |
Tin layer covering area of 95% |
Technical Specifications
| Parameter |
Specification |
| Rated Power |
20W-1000W (70°C) |
| Temperature Range |
-55°C~+165°C |
| TCR |
≤±150PPM/°C |
| Temperature Shock (-55°C/+125°C, 3 times) |
ΔR≤±5%R |
| Moisture Proof (GJB306A-96-Method106) |
ΔR≤±5%R |
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±3%R, No mechanical damage |
| Test at Low Temperature (-55°C, 24h) |
ΔR≤±5%R |
| Load Life (96) |
ΔR≤±5% |
| Collision |
ΔR≤±3%R |
Packaging & Delivery
Professional, environmentally friendly, convenient and efficient packaging services to ensure the safety of your goods during transit.
Company Profile
Sichuan Qixing Electronics Co., Ltd. specializes in manufacturing high-power resistors, wire-wound potentiometers, trimmer potentiometers, rotary carbon potentiometers, and precision parts. With extensive experience in both civil and military industrial products, we strictly enforce ISO9001 and ISO2000 quality control systems.
Our products are widely used in electronic communication products, instrument measuring appliances, cable TV equipment, electrician products, color television, consoles, video and audio products, and many other applications. To maintain our leading industry position, we have strengthened our product development capabilities and introduced world-leading high-temperature polymerization furnaces from the USA to establish ceramic resistance element production lines.
QIXING currently employs 500 workers, including 56 professionals (35 with over 10 years' experience in potentiometer/high-power resistors). We provide product design and development services, OEM services, comprehensive after-sales support, and technical assistance for new product ideas.
Our company has made significant contributions to national defense and economic development by providing high-quality products to military and civil industry units. Our quality policy is "Technical innovation, striving for perfection, keeping on improving, continuously satisfying customers," and our goal is to "let customers be satisfied completely." Our dedicated staff continues to create a magnificent tomorrow with wit and diligence.
