multi turn potentiometer
WXD3-13-2W 10kオム 精密 マルチターン回転式ワイヤーワンドポテンチオメーター
product name WXD3 WXD3-13 2W Multi-Turn Wirewound Potentiometer Rotary Switch 10 turns 5k 10k 100k product description: Precision multi-line wire winding power WXD3-13-2W, 20 boxes of sliding barrier, a shaft diameter 4mm axis 20mm outer diameter 20mm, 2W, 10 laps, resistance value of 100 ohm, 220 ohm, 330 Euros. 470 ohm, 1K, 2K, 2.3K, 3.4K, 7.5K, 10K, 22K, 33K, 47K Product Features High structure structure Excellent craftsmanship, smooth movement, reliable and stable
WDD35D4 5K 2W 多回転導電性プラスチック精密回転ポテンチオメーター
WDD35D4 Pictures: WDD35D4-5K 2W multi-turns conductive plastic precision Rotary potentiometer WDD35D4 Dimentions: WDD35D4 Data : Performance Parameters: Resistance.................................................1 k, 2 k, 3 k, 5 k The resistance tolerance..............................+ / - 15% Independent linear......................................1%, 0.5%, 0.3%, 0.2%, 0.3% Electrical Angle..........................................345 ° + /-5 The rated power.................

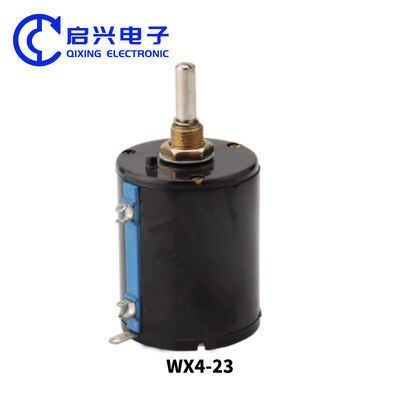

BONENS WXD4-23 6mm シャフト 多回転回転式ワイヤーワンドポテンチオメーター 10K オーム 3ワット
B502 5K 10 turns potentiometer ◊ Product Picture: ◊ Product Size Drawing: ◊ Our Main products you may interested: ◊ Our Factory:
3269X, 3269P, 3269W BONENS マルチターンSMD 精密トリマーポテンチオメーター / 調整可能なレジスタ
3269P variable resistor potentiometer The 3269 series potentiometer is a type of potentiometer. It is usually composed of a resistive body and a rotating or sliding system, that is, a moving contact moves on the resistive body to obtain a partial voltage output. The function of the potentiometer is to adjust the voltage (including DC voltage and signal voltage) and the magnitude of the current. 3269X variable resistor potentiometer 3269 potentiometers are mainly used in
C3305 3x3mm グラス・グラス・パッチ SMD トリマーポテンチオメーター 100Ω~1MΩ 調整可能なレジスタ
C3305 Trimmer Potentiometers Single turn glass glaze patch SMD adjustable resistors available in 1K, 5K, 10K, 20K, 50K, 100K and other resistance values. Product Overview C3305 Single Ring Glass Glaze Patch Pre-adjusted Potentiometer is an original integrated circuit electronic component designed for precision fine-tuning applications. Technical Description The 3x3 chip potentiometer consists of a resistor body and rotating system, designed for surface mounting on PCB circuit
3296w 10k オーム 0.5ワット ガラスグラス マルチターン回転トリマー ポテンシオメーター 変数抵抗
product name 3296W multi turn metal glass glaze fine adjustment potentiometer precision adjustable resistor resistance value correspondence table 3296W multi-turn glass glaze pre-adjustable potentiometer resistance value 3296W-101=100R 3296W-102=1K 3296W-103=10K 3296W-104=100K 3296W-105=1M 3296W-201=200R 3296W-202=2K 3296W-203=20K 3296W-204=200K 3296W-205=2M 3296W-500=50R 3296W-501=500R 3296W-502=5K 3296W-503=50K 3296W-504=500K product description The 3296W potentiometer is a
3296 高精度の調整のために28回転を持つガラスグラストリマーポテンチオメーター
product name: 3296 series multi turn metal glass glaze fine adjustment potentiometer precision adjustable resistor product description: Potentiometer 3296W is a multi-turn potentiometer, the adjustment accuracy of resistance has 5% and 10% two standards, the resistance range of the product is: 10Ω ~ 5MΩ. With a total mechanical stroke of 28±2 turns, the 3296 potentiometer is one of the most commonly used multiturn potentiometers.3296 series potentiometer has many different
BONENS マルチターンサーメット トリンポット 3296W ポテンチオメーター 1k 2k 5k 10k 20k 50k 100k オーム
product name 3296W multi turn metal glass glaze fine adjustment potentiometer precision adjustable resistor spots:1K 2K 5K 10K 20K 50K 100K product description Potentiometer 3296W is a multi-turn potentiometer, the adjustment accuracy of resistance has 5% and 10% two standards, the resistance range of the product is: 10Ω ~ 5MΩ. With a total mechanical stroke of 28±2 turns, the 3296 potentiometer is one of the most commonly used multiturn potentiometers.3296 series potentiomet
各種電子機器用の可変用3590S-2-103Lワイヤーワンドポテンチオメーター
PRODUCT NAME 3590 precision multi turn wire wound potentiometer 10K ohm PRODUCT DESCRIPTION Potentiometer type:Multi turn potentiometer Potentiometer material:wire wound model:3590S-2-103L Resistance: 10K Ω Permissible resistance range: ± 5% Electrical rotation angle: 3600 ° ± 10 °(10 turn) Rated power: 2W (70 ℃) Temperature range: -55 ℃~+125 ℃ Total mechanical stroke: 3600 ° ± 10 °(10 turn) Shaft type:Circular shaft D shaft shaft material: metal shaft Shaft diameter: 6.3mm
