high power wirewound resistor
1000W固定アルミシェルブレーキレジスタ 高功率ワイアワンドレジスタ 陶器組成
1Ω～30KΩの範囲の1000Wアルミニウムシェル制動抵抗器。耐久性、±5% 公差、ISO9001/TUV/ROHS 認証を備えた巻線構造が特徴です。産業オートメーション、インバーターブレーキ、高出力アプリケーションに最適です。

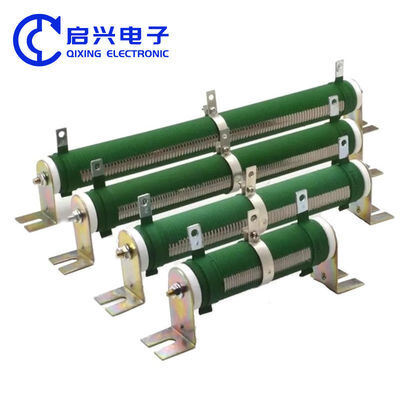

高出力用途向け 2000W リップル制動 可変巻線抵抗器
Products Show Ripple braking wirewound 2000W variable resistorRated Power : 2000W Size: 430mm length & 70mm diameterResistance value：1RJ 2RJ 3RJ 4RJ 6RJ.......10KRJType : AdjustableFeatures:1.Resistance surface is paint, power range is wide 2.Excellent high temperature load performance 3.Full welded structure4.High reliability RX20 Fixed Types you may also like Company Profile Factroy Informations:Sichuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in
高功率ワイヤーワンドレジスタ 5W 10W 20W 100W 47 50 100オーム セラミックセメントレジスタ
product name: Cement resistor 5W 10W 0.25R 0.5R 3R 27R 12R 100R 5% ceramic resistor product description: Cement resistor is a resistor sealed with fire-resistant clay, which involves winding the resistance wire onto a non alkaline heat-resistant porcelain piece, wrapping it with heat-resistant, moisture-resistant, and corrosion-resistant materials, and placing the wire wound resistor body into a square porcelain frame, sealed with special non combustible heat-resistant cement
RX24 50w 100RJ ゴールド アルミニウム ハウズドワイアワンド抵抗 高電力
product name RX24 50w 100RJ Gold Aluminum Housed Wirewound resistor High Power Product Description The surface of the gold aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and easy
高功率ワイアワウンドポテンチオメーター 回転式リオスタットディスク セラミック変容電阻 25W 50W BC1-50W BC1
Variable rheostat 50w Data list: Electrical Characteristics: Range of nominal resistance.........1Ω~10KΩ Resistance tolerance.........±10% Terminal resistance.........≤0.2% or 1Ω Insulation resistance.........≥100mΩ(500Vdc) Max heating temperature.........350° Environment Characteristics: Rated power.......................50W-500W @ 85°,or @ 400 Temperature range.................-55°~400° Vibration.........................10~200HZ, 40m/S2, 3h ΔR≤±3%R Thermal cycles...........
BONENS RXG20 500W 高功率ワイヤーワンドブレーキレジスタ 陶器管パッケージと5%の許容量
Product Description Ripple Tube Painted Braking Resistor 500W High Power wirewound Resistor Namebraking resistorModelRXG20Performancehigh powerShapeCylindrical ceramic tubeMaterialWirewoundRated power500 WResistance1ohms~5K ohmsResistance tolerance±5%DiameterD=50mmLengthL1=330mmMounting bracketsIncludingNon-standard sizeCan be customizedAdjustable typeCan be offered Packing & Delivery Company Profile Sichuan Qixing Electronics CO.,LTD specialize in potentiometers, resistors

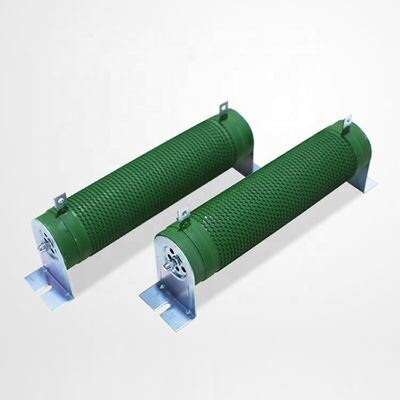

5000W 高出力 巻線制動电阻器、带涂层陶瓷管和可定制尺寸
Products Show 5KW High Power wirewound Braking Resistor 5000WRated Power : 5000W Size: 500mm length & 100mm diameterResistance value：1R 2R 3R 4R 6R.......10KRResistance tolerance: ±1%(F), ±2%(G), ±5%(J), ±10%(K)Type : Fixed Features:1.The surface of the resistor is coated with insulating resin paint, and the materials are all non-toxic and environmentally ROHS products 2. Adopt vertical corrugated winding, which can reduce parasitic inductance, enhance heat dissipation
高功率ワイヤーワウンドレジスタ 25w グリーン金属アルミケースレジスタ
product name High power Wirewound Resistor 25w Green metal aluminum case resistor Product Description The surface of the gold aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and
調節可能なワイアワンドレジスタ 100w 高電圧セラミックレジスタ
Rx20 adjustable wirewound resistors 100w high power ceramic resistor PRODUCT NAME RX20 High Power Aging Load Corrugated Wire Wound Porcelain Tube Resistor 10w~10000watt PRODUCT INTRODUCTION Specifications: Power range 10W-10000W. Voltage range- 0.5KV-10KV. Resistance Range 1R-1KR. Pressure- AC2500V / 1min50Hz. IP rating IP00. Rated temperature- 375 ℃, short-term / repeat 40% ED. Thermal equilibrium time constant τ = 200s. Advantages High voltage. Packing-- carton packaging.
