high power rf resistors
RFレジスタ 偽装負荷レジスタ 動作温度 −55°C~+125°C 1.2~1.3 スタンドウェーブ比 銅ニッケル付フラングマウント
RIG RF resistor flange mount 100 ohms 50ohms dummy load resistorCustom designs available RF Attenuators and RF Resistors and RF Terminations. Product Description The following are the commonly used sizes, we can also customize the size according to your requirements Electrical Characteristics:Range of nominal resistance1 ~500ΩResistance tolerance±5%Frequency range0~2GHzStanding wave ratio1.2~1.3Insulation resistance≥ 1GΩWithstand voltage500V/1 mm (Substrate thickness
フレンズマウント RFレジスタ 1~100 Ohm抵抗 ±5% 許容度 DC-1GHZ周波数帯
Product Description RFG RFR RFT 5W 10W 20W 50W 10W 150W 250W 400W 800W 1000W 50R 100R 50 ohm 100 ohm Power RF TERMINATION RESISTOR. BONENSSmall size, high power, stable and reliable performance, easy installation Electrical CharacteristicsRange of nominal resistance:1Ω-500ΩResistance tolerance: ±5%Frequency range: 0~2GHzStanding wave ratio: 1.2~1.3Insulation resistance: ≥ 1GΩWithstand voltage: 500V/1 mm (Substrate thickness) Physical CharacteristicsTerminal strength(10N,5S):
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications

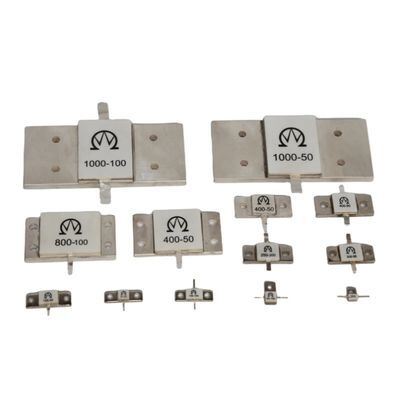

Aluminum Housing Resistor with Flange Mount RIG Series RIG RF Resistance, Microstrip Resistor, Microwave Attenuator BONENS high power RF resistor available in 1000W, 2000W, 800W, 500W, 250W, 100W, 60W, 40W, and 30W flange resistor models with 50Ω and 100Ω options. Features: Small size with high power capacity Stable and reliable performance Easy installation Electrical Characteristics Range of nominal resistance 1Ω-500Ω Resistance tolerance ±5% Frequency range 0~2GHz Standing
250ワット 100オームのRF終止電阻 0~1.5GHzの周波数と -55~+125°Cの温度範囲のための銅ニッケル付熱槽
Product Description 250 Watt 100 ohms RF Termination resistor Other commonly used ratings powerFor enquiries, please specify : 1.power and resistance 2. need single lead or double leads Specification ElectricalCharacteristicsRange of nominal resistance10Ω~500ΩResistance tolerance±2%, ±5%Frequency0 ~2GHZWistand Voltage500V/1mmInsulation resistance≥ 1GΩStanding wave rate1.2-1.3EnvironmentCharacteristicsRated power1-1200WTemperature range-55°C~+125°CTCR≤±200PPM/°CTemperature

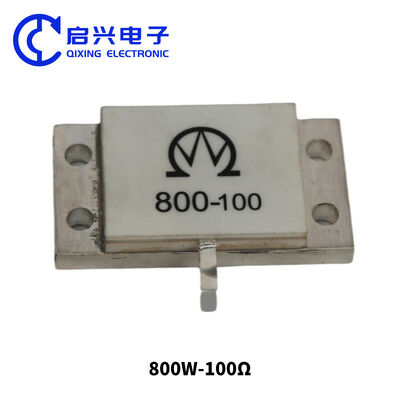

RIG 高電力 800W RF抵抗器 フレンジマウント 50ohm 100ohm DC-1GHZ 周波数
800W RF フランジ マウント終端 (50Ω/100Ω)、許容差 ±5%、最大 1GHz の 1.2:1 SWR。 RoHS/ISO9001認証取得、-55℃～+165℃で動作します。信頼性の高い高出力アプリケーション向けの 1 ～ 2 ピンのオプションを備えたコンパクトな BeO パッケージ。
500W 50オム フレンズマウント高電源終了付きRF抵抗器
10 ～ 500Ω の範囲、±5% の許容差、および優れた 0 ～ 2GHz の周波数性能を備えた 500W フランジ マウント RF 抵抗器。 RoHS、TUV、ISO9001認証、コンパクトな設計、-55℃～+165℃での安定した動作を特徴としており、通信システムで信頼性の高い使用が可能です。
High Power 60W 100R Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 0~2GHz Frequency for RF Applications
High Power 60W 100R Flange Resistor Product Overview Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors Key Features Compact size with high power capacity Excellent high-frequency characteristics Reliable performance and easy installation Ideal for power distributors, isolation resistance and terminal load applications Technical Specifications
RIG42 800W 50Ω 安定した性能のためのフレンズマウント付き高性能セラミックRFレジスタ
RIG42 高出力 RF 抵抗器 (800W ～ 1500W) は、1 ～ 500Ω の範囲で ±5% の許容差を提供します。 BeO/Cu構造により、-55℃から+125℃までの安定性を保証します。カスタム オプション、データシート サポート、および世界的な認証を備えた OEM メーカー。
High Power 1000W Flange Resistor with ±300*10-6/℃ Temperature Coefficient and -55°C~+125°C Operating Temperature
High Power 1000W Flange Resistor 100 Ohm High Intensity Ceramic Resistor Product Features Small size with high power capacity Stable and reliable performance Easy installation process High intensity ceramic construction Electrical Characteristics Range of nominal resistance: 1Ω-500Ω Resistance tolerance: ±5% Frequency range: 0~2GHz Standing wave ratio: 1.2~1.3 Insulation resistance: ≥ 1GΩ Withstand voltage: 500V/1 mm (Substrate thickness) Physical Characteristics Terminal
