3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications

起源の場所	中国四川省
ブランド名	BONENS
モデル番号	RX20-500W

プロダクト細部

抵抗:

1Ω～30KΩ

耐性耐性:

±5%, ±5%

温度係数:

150ppm

定格電力:

10ワット-5000ワット

構成:

陶器の組成

パッケージの種類:

穴を通して

タイプ:

修理済み

長さ:

430mm

直径:

80mm

抵抗値:

1R 2R 3R 4R 6R....10KR

抵抗値許容範囲:

±1%(F)、±2%(G)、±5%(J)、±10%(K)

温度係数範囲:

≦±250ppm/℃

周囲温度:

-55℃～+155℃

テクノロジー:

ワイヤーワンド

関数:

ブレーキ/ブレーキ抵抗

ハイライト:

3000W Wirewound Resistor

,

Aluminum Housed Braking Resistor

,

Ceramic Composition Load Resistor

支払及び船積みの言葉

最小注文数量

1

製品の説明

Customized 300W Aluminum Housed Wirewound Load Resistor Supply

Product Overview

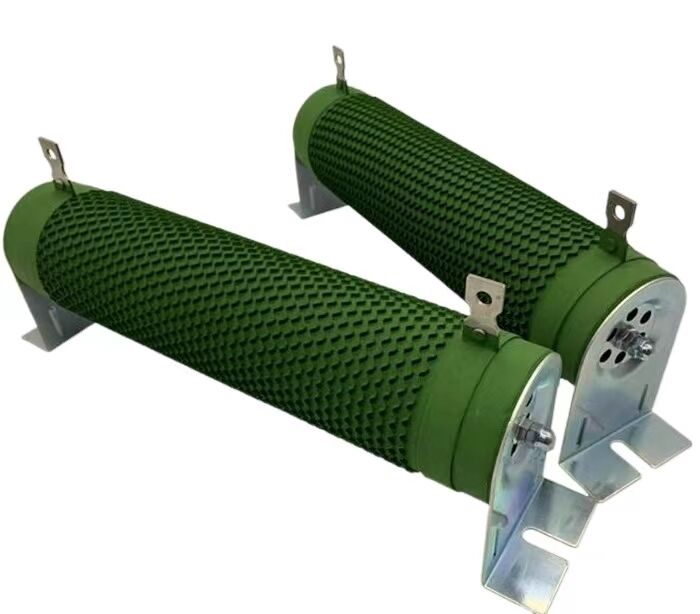

Green ripple wirewound painted Braking Resistor 3000W designed for industrial applications requiring reliable power dissipation and load testing.

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 0

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 1

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 2

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 3

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 4

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 5

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 6

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 7

Product Specifications

Product Name	Painted Tubular Ceramic Inductive Resistor
Rated Power	3000W
Type	Fixed
Size	430mm length & 80mm diameter (Can be customized according to customer requirements)
Color	Green
Resistance Value	1R 2R 3R 4R 6R.......10KR
Resistance Tolerance	±1%(F), ±2%(G), ±5%(J), ±10%(K)
Temperature Coefficient	≤±250ppm/℃
Ambient Temperature	-55℃～+155℃
Application	Load test, equipment discharge, automatic control, frequency converter, etc.

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 8

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 9

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 10

Key Features

High power rating of 3000W for demanding applications
Customizable dimensions to fit specific requirements
Wide resistance range from 1R to 10KR
Multiple tolerance options for precision applications
Excellent temperature stability with low coefficient
Robust construction for industrial environments

Manufacturer Profile

Professional manufacturer specializing in high-quality industrial resistors and electrical components with extensive experience in custom solutions.

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 11

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 12

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 13

3000W Aluminum Housed Ceramic Composition Wirewound Braking Resistor for Load Applications 14
