| 起源の場所 | 四川、中国 |
| ブランド名 | China |
| モデル番号 | BCI |

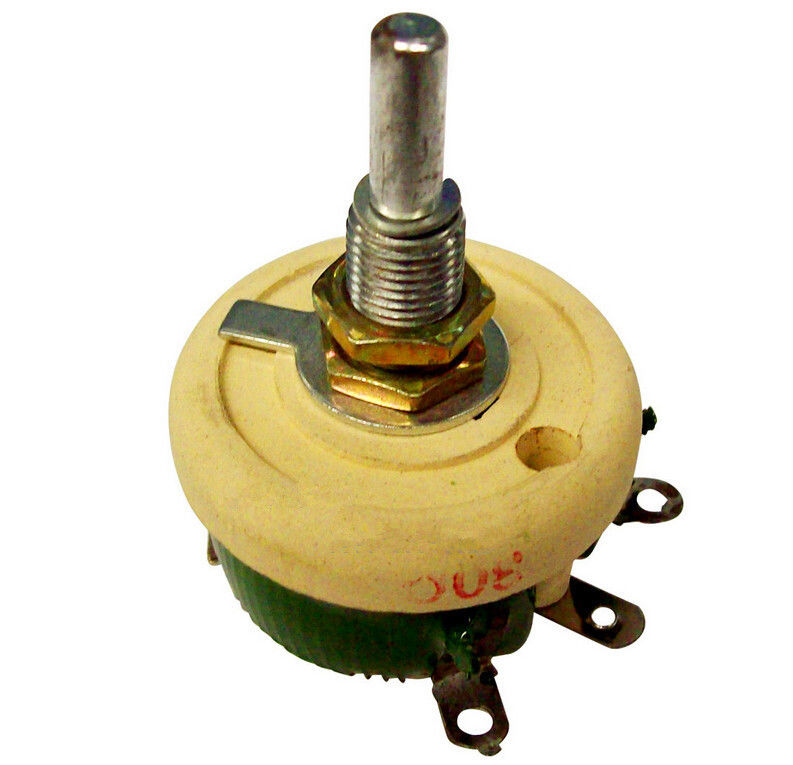

The BC-1 wire wound resistor features high resolution capability with a wide resistance range. Designed for durability, it offers excellent heat resistance, humidity resistance, and wear resistance characteristics. Suitable for voltage and current adjustment in power equipment and circuits not exceeding 380V AC or 220V DC.
The BC1 series rotor-arm sliding wire porcelain disk variants are designed for voltage and current adjustment in industrial electrical equipment up to 500 volts. The resistor uses high-quality resistance wire wound on a ceramic skeleton, coated with high-temperature enamel except for the sliding contact surface. Features metal protective housing with handwheel operation.
| ELECTRICAL CHARACTERISTICS | ENVIRONMENT CHARACTERISTICS | ||
|---|---|---|---|
| Standard resistance range | 1Ω~5KΩ | Temperature range | -55℃~350℃ |
| Resistance tolerance | ±10% | Vibration | 10~200HZ,40m/S², 3h△R≤±3%R |
| Terminal resistance | ≤0.2% or 1Ω | Temperature cycling | -55°C to 85°C, △R<+3%R |
| Insulation resistance | ≥100mΩ(500Vdc) | Humidity | 40±2°C, RH:95%-98% |
| Maximum temperature | 350℃ | Load durability | 5000 cycles (R≤1KΩ) |
| Mechanical travel | 300°±10° | Shock resistance | 60~100 times/min, 150m/s² |
Ideal for telecommunications, railway systems, electrical equipment, medical devices, industrial machinery, and low-frequency AC/DC electrical equipment requiring voltage/current regulation or adjustable load resistance.
